A H Beard RENEW Zero Clearance Split Adjustable Bed
Size
RENEW - Split Adjustable Bed

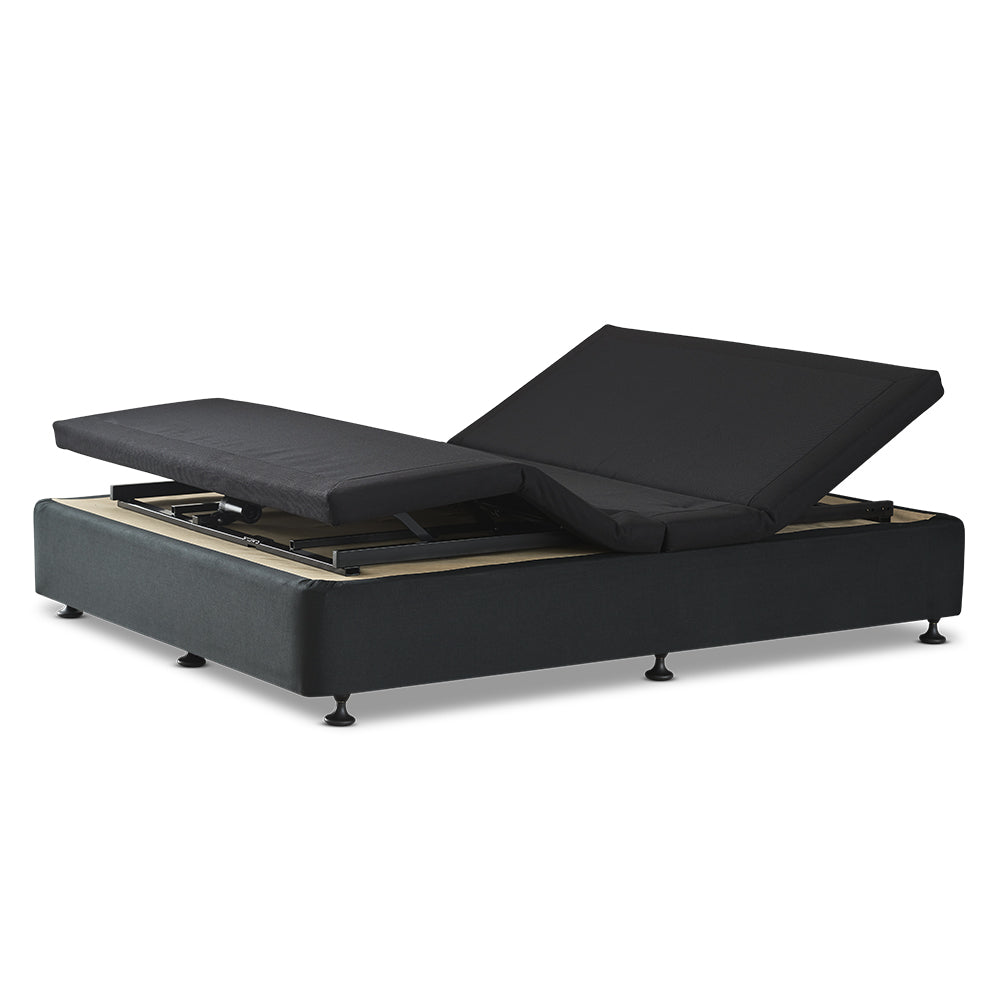

- Innovative zero clearance technology seamlessly integrates with any existing platform bed.
- Or use the Renew within the parameters of an existing Bed Frame*
Frame Compatibility Guide
✅ Internal Dimensions Required
- Minimum internal width KING: 184 cm (to fit both halves side by side, each half is approx. 92 cm wide)
- Minimum internal width CALI KING 2150 cm (to fit both halves side by side, each half is approx. 107 cm wide)
- Minimum internal length: 204 cm
- Measure your frame's inside rails — not the outer footprint. Slatted or solid panel bases must be removed or the base must sit on top.
✅ Frame Sturdiness Requirements
- Frame must support the combined weight of two motorised base units plus mattresses (typically 80–120 kg total base weight).
- Side rails must be rigid — flex or bow under load will cause the base to rock and can generate noise or even worse break .
- Centre support legs or a centre rail are strongly recommended for King frames to prevent rail deflection.
✅ Clearance Checks
- Zero Clearance mode (no legs): The base sits directly on the floor inside the frame. Frame rail height must be at least 15 cm (standard rail depth) to contain the base securely.
- With supplied legs: Medium legs add approx. 15 cm to base height; high legs add approx. 26 cm. Confirm your frame depth can accommodate the chosen leg height, or remove the legs and use Zero Clearance mode.
- Ensure no cross-slats, support bars, or internal brackets fall within the 184 × 204 cm / 2150 x 204cm footprint — these will obstruct the base and prevent flat positioning.
✅ Supplied Leg Options
- Medium legs — suitable for most bed-height preferences; recommended when using without a frame.
- High legs — for a taller base height or easier access; also included with purchase.
- No legs required when placing inside a frame (Zero Clearance mode).
❌ Incompatible Frame Types
- Frames with fixed internal cross-bars or integral slat systems that cannot be removed — these prevent the base from lying flat.
- Frames with internal width under 184 King /2150 Cali King — the two halves will not fit side by side.
- Lightweight or flat-pack frames (e.g. basic metal snap-together frames) — insufficient rigidity causes movement noise and potential instability under motorised articulation.
- Frames with integrated footboards that restrict base travel — the foot-end articulation needs clear upward movement; any fixed obstruction below the mattress level at the foot end will impede operation.
- Non-King frames — this is a King Split base and is sized for a standard King (183 × 203 cm) mattress footprint only.
Features at a glance:
| Feature | RENEW | ENLIVEN II | INVIGORATE | ENRICH | UPLIFT |
| Head and Foot Articulation | ✓ | ✓ | ✓ | ✓ | ✓ |
| Wireless remote | With flashlight | With flashlight | With flashlight | With flashlight | With flashlight |
| Pre-set positions | Flat/Zero-G | Flat and Zero-G | Flat/Zero-G/TV/Quiet sleep | Flat/Zero-G/Quiet sleep | Flat/Zero-G |
| Memory buttons | 2 | 2 | 1 | 1 | |
| Massage | Three intensity levels + Wave | Three intensity levels + Wave | Three intensity levels + Wave | ||
| Adjustable Lumbar Support | ✓ | ||||
| Overall Incline Control | ✓ | ||||
| Overall Height Adjustment | ✓ | ||||
| Bluetooth connectivity | ✓ | ✓ | ✓ | ✓ | ✓ |
| USB ports | ✓ | ✓ | ✓ | ||
| Under Bed lighting | Floor strip LEDs | Floor strip LEDs | Floor strip LEDs | Floor strip LEDs | |
| Retainer bar/s | ✓ | ✓ | ✓ | ✓ | ✓ |
| Wall Hugger | ✓ | ✓ | |||
| Option Safety Rail/Support | ✓ | ✓ | |||
| Headboard Compatible | ✓ | ✓ | ✓ | ✓ | |
| Adjustable Leg Heights | 10cm, 12cm or 22cm | 12.5cm, 17.5cm, 19cm, 22.5cm | 7cm, 13cm or 20cm | 7cm, 13cm, 20cm | 7cm, 13cm, 20cm |
| Colour | Black | Black | Black | Black | Black |
| Depth of Base | 5cm | 16cm | 16cm | 24cm | 24cm |
| Weight limits | Approx. 340kg per base | Approx. 340kg per base | Approx. 340kg per base | Approx. 400kg per base | Approx. 400kg per base |
| 10 Year Manufacturer's Warranty | ✓ | ✓ | ✓ | ✓ | ✓ |
Freight Free Australia Wide *
*Free freight applies to metro & regional areas only rural & outback locations will require specialised freight & will need to be assessed individually.
*depending on stock availability and production schedules
For more detailed information, please view the SHIPPING INFORMATION page
Napp Australia
How can an Adjustable Bed help me?
Feet Only
Easily reduce the pressure on your back by distributing weight more evenly when you find the perfect posture. For many people, slightly elevating their feet reduces lower back strain, by allowing the lumbar area to fully relax and decompress.
Zero Gravity
Resting in this position will alleviate strain on your legs and lower back. Wake up feeling rested and ready to conquer the day.
Head Only
Elevating your head enables the air to flow more freely and reduces the vibrations that we know as snoring. When you snore due to congestion, elevation can also be helpful for supporting drainage and keeping sinuses clear.
Quiet Sleep
By sleeping with your head and body partially elevated, you’re allowing gravity to work it’s magic by hindering the contents of your stomach from leaking into your esophagus, causing heartburn.
